Supporting the engineering and construction industry with Professional CAD Outsource Services

Multi-Discipline Draughting Services

multi-discipline draughting services

CAD-Resource.com provides its clients with a comprehensive array of services in all drafting related aspects of their respective businesses.

The following is a guide to services we can provide to your business.

  • Structural & Civil general arrangement drawings, details & sections.
  • Architectural general arrangements, details, sections & elevations.
  • Planning Application drawings.
  • Production of reinforced concrete detail drawings & bar bending schedules.
  • Production of steelwork fabrication drawings.

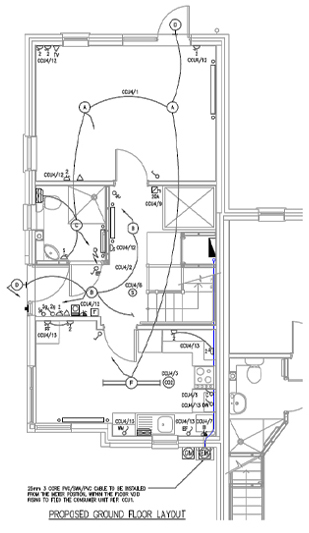

  • Mechanical & Electrical drawing production.
  • General 2D & 3D drafting.
  • Conversion from hard copy to CAD.

Essentially - if it needs to be presented on a cad drawing, we can help!
